FLUX

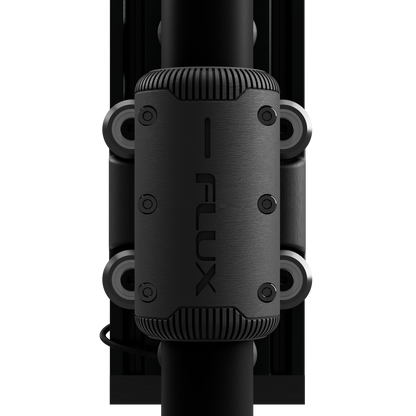

Smart Magnetic Breakaway System

Smart Magnetic Breakaway System

for CNC Plasma Torches

$249.00 AUD
$349.00 AUD $249.00 AUD
Sale Sold out

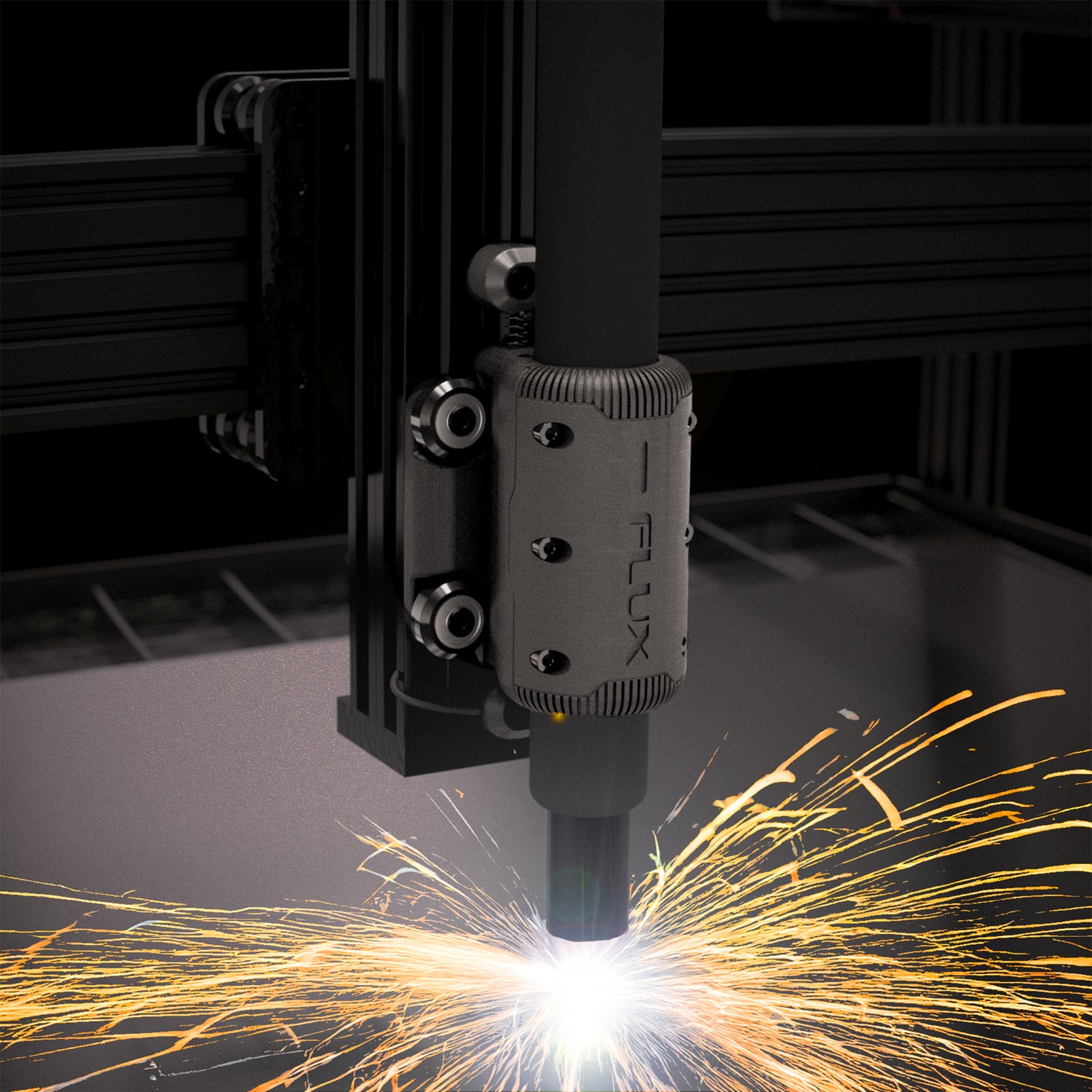

A torch crash can be catastrophic, it can wreck your torch, your job or even your whole machine. Flux combines a smart magnetic breakaway with a full floating head, so it disconnects safely on impact and delivers precise, repeatable initial height sensing every time. Flux helps to protect your torch, your job, and your table.

NOTE: Linear actuator/ aluminium extrusion not included.

View full details

Quick Highlights

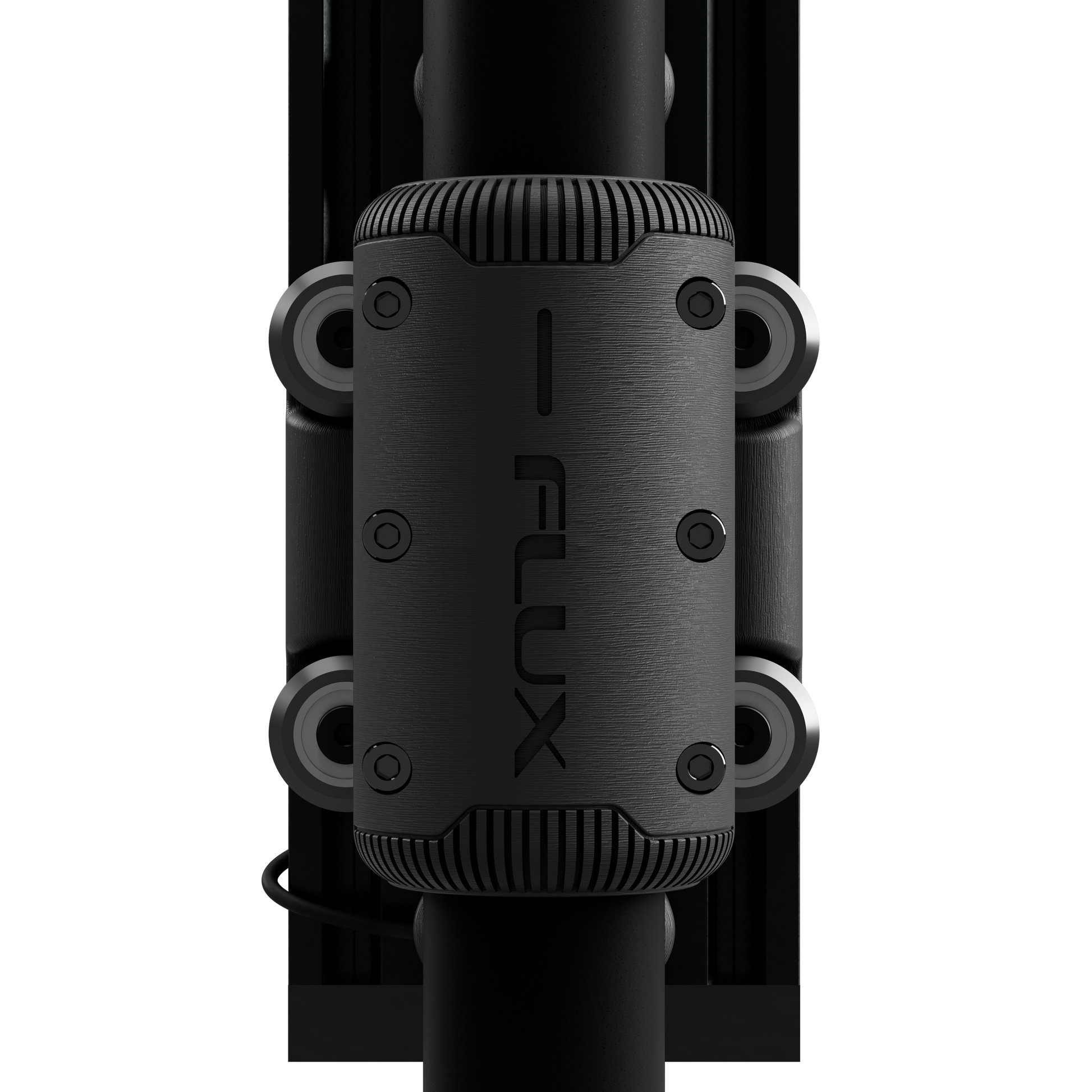

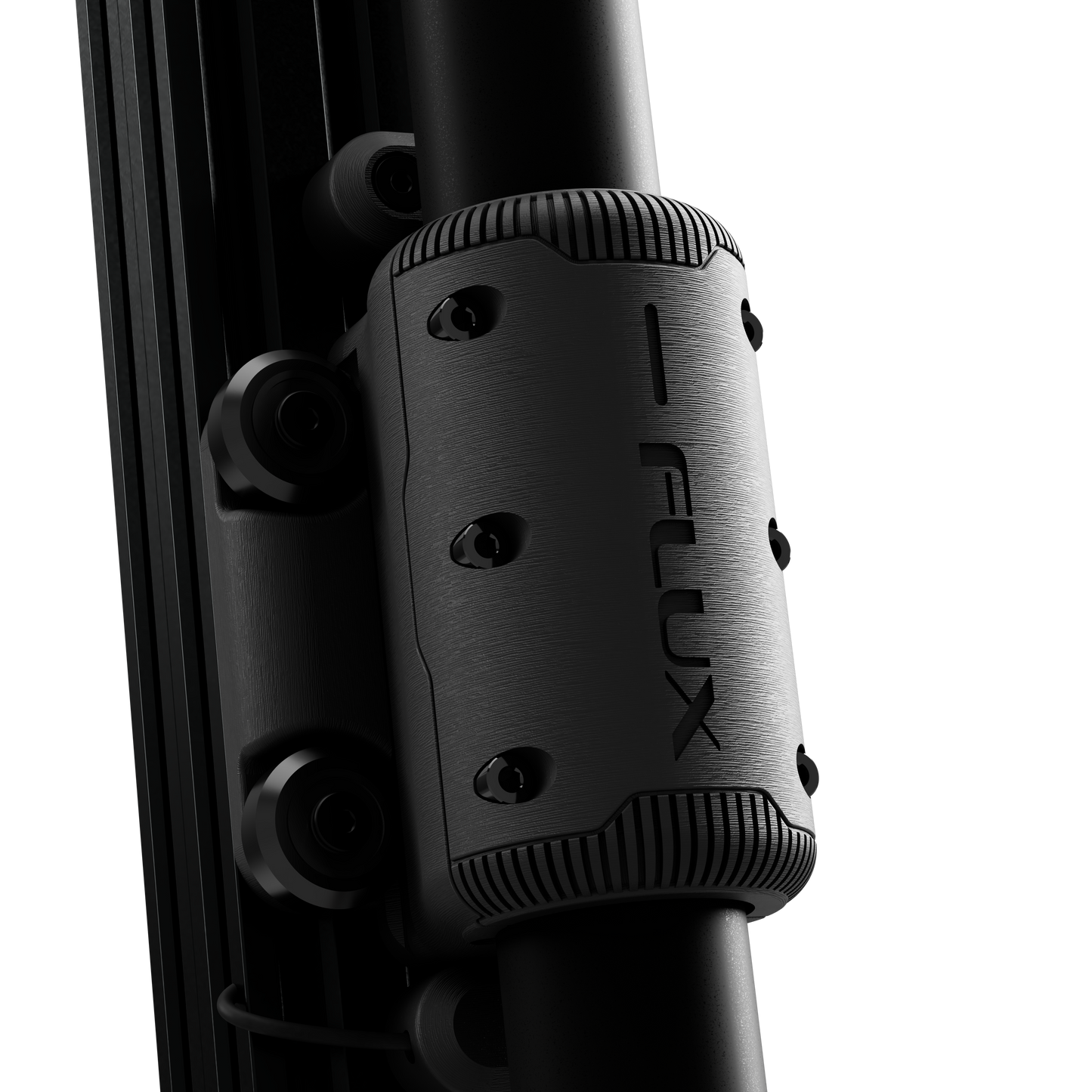

Unlike bulky, industrial alternatives, Flux is compact and refined — with all components hidden inside a clean, professional enclosure. Engineered to look as good as it performs, it's made for makers and CNC professionals who care about aesthetics and reliability.

  • Fits Standard 35mm Torches
  • T & V Slot Compatible
  • Instant Magnetic Breakaway
  • Strong Hold, Smart Release
  • Self Aligning Reset
  • Waterproof Crash Sensor
  • Incorporated Lanyard
  • Engineered for Harsh Environments

Engineered Tough

Engineering Grade Polymer Construction

Manufactured from a specially selected, high performance, engineering polymer to stand up to tough workshop conditions.

Crash Detection

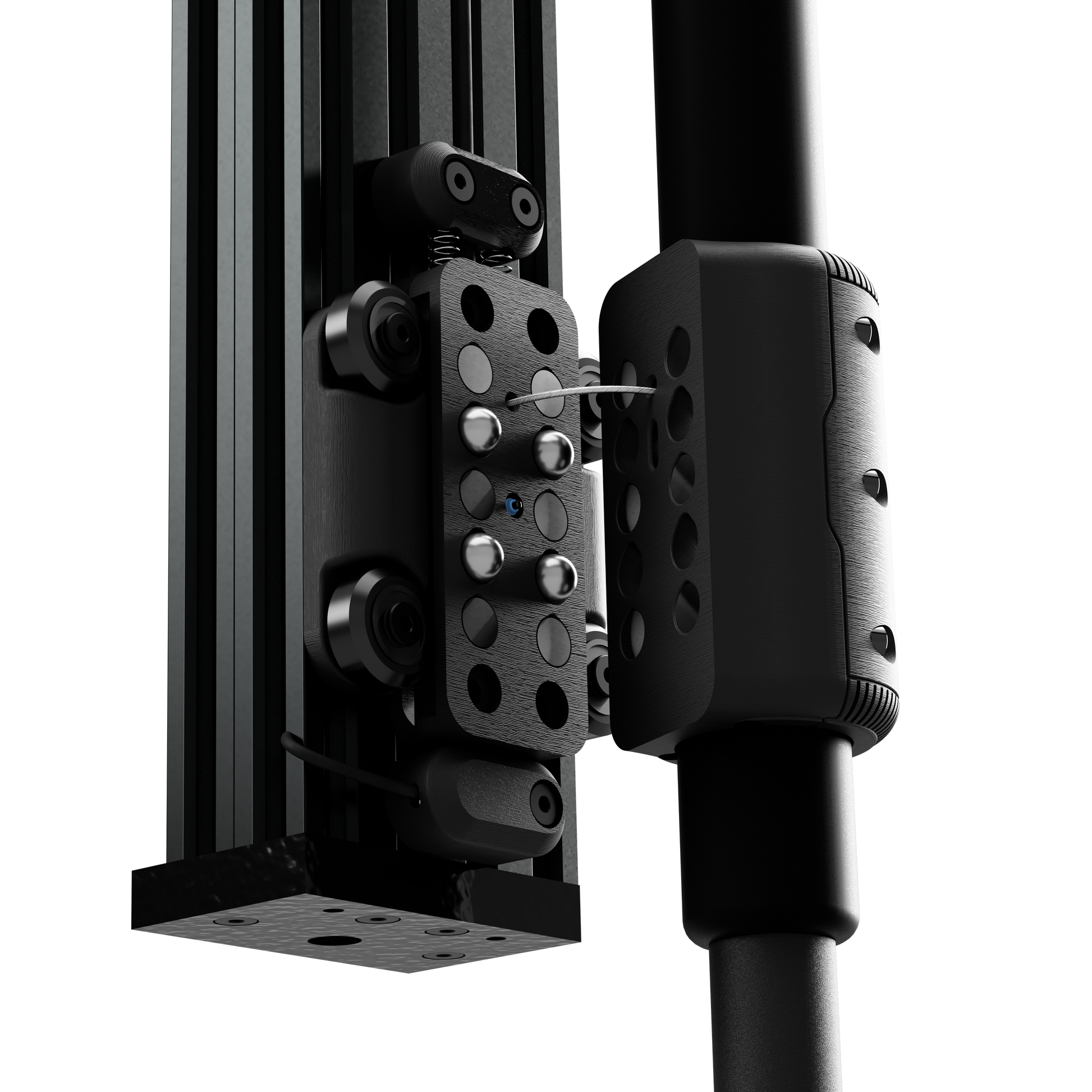

Magnetic Disconnect

Instant magnetic separation protects your torch and machine. It breaks away fast during a crash to help save your torch & cut.

Smart Detection

Built-in Breakaway Sensor

An IP67-rated sensor alerts your controller instantly. Minimising torch damage and job loss during a collision.

Accurate Reset

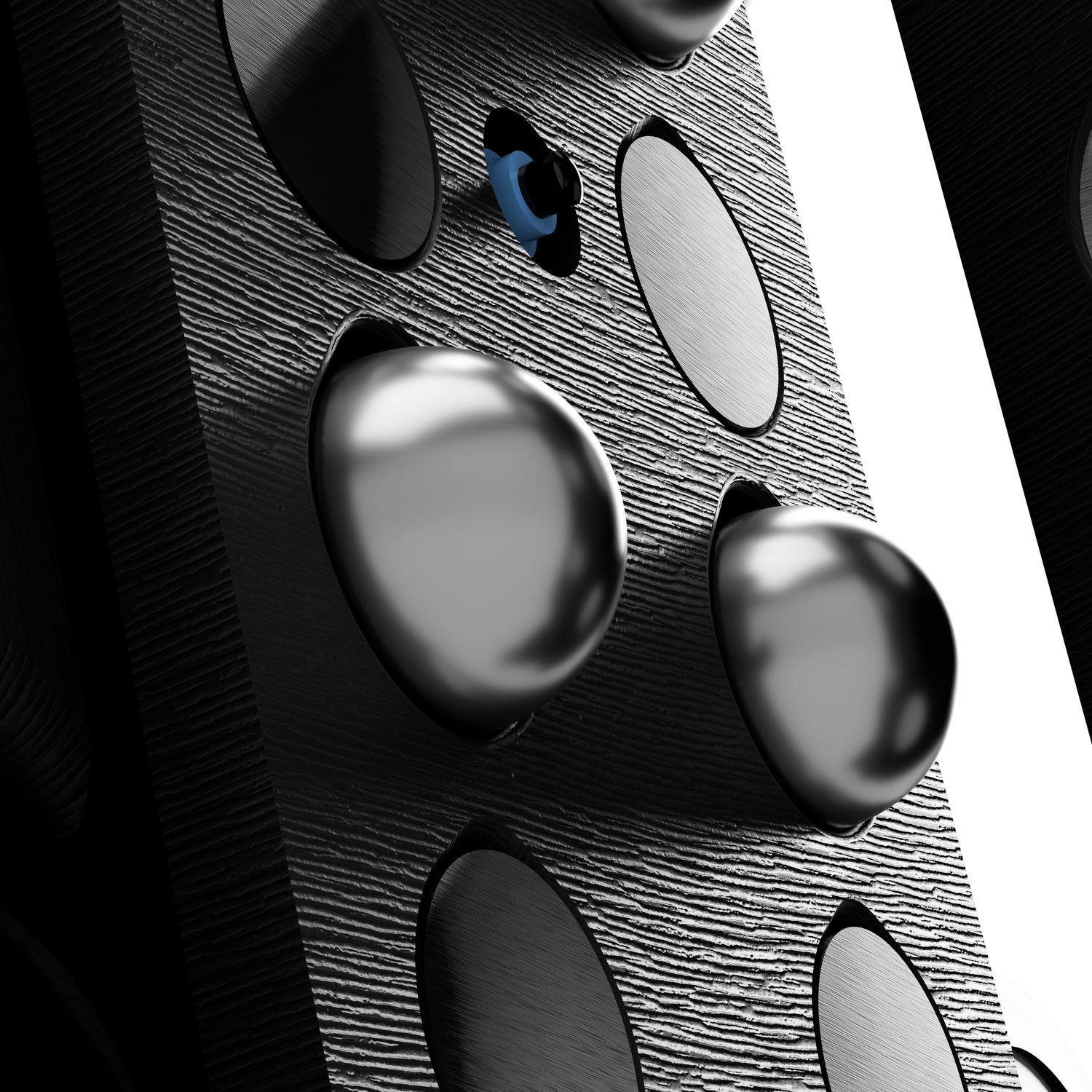

Precision Steel Balls

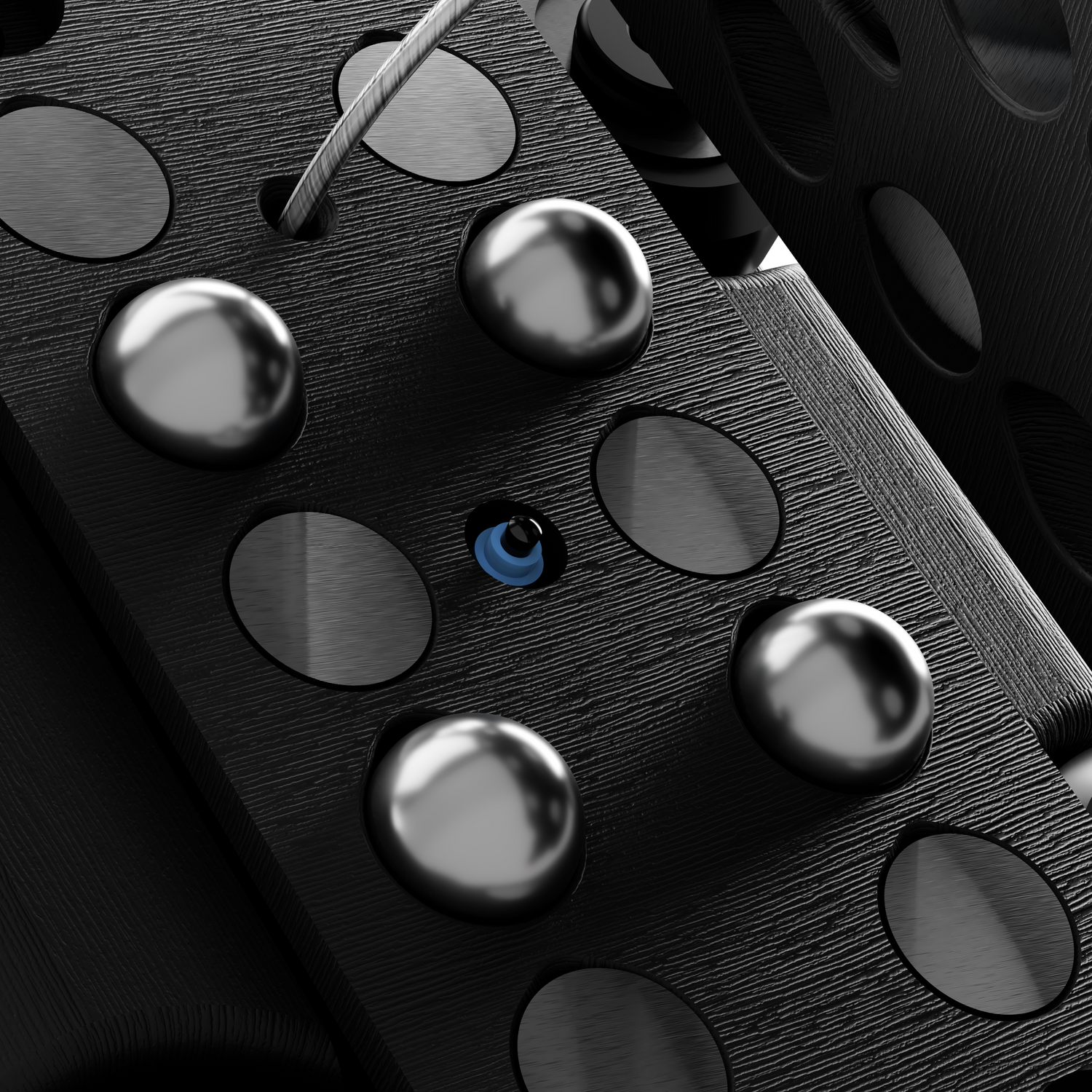

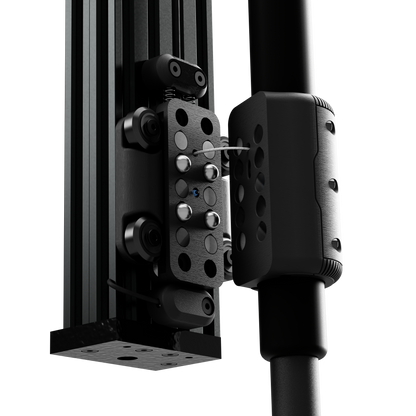

Four precision ground stainless steel balls combine with 12 strong magnets to accurately reset after a crash.

Catch System

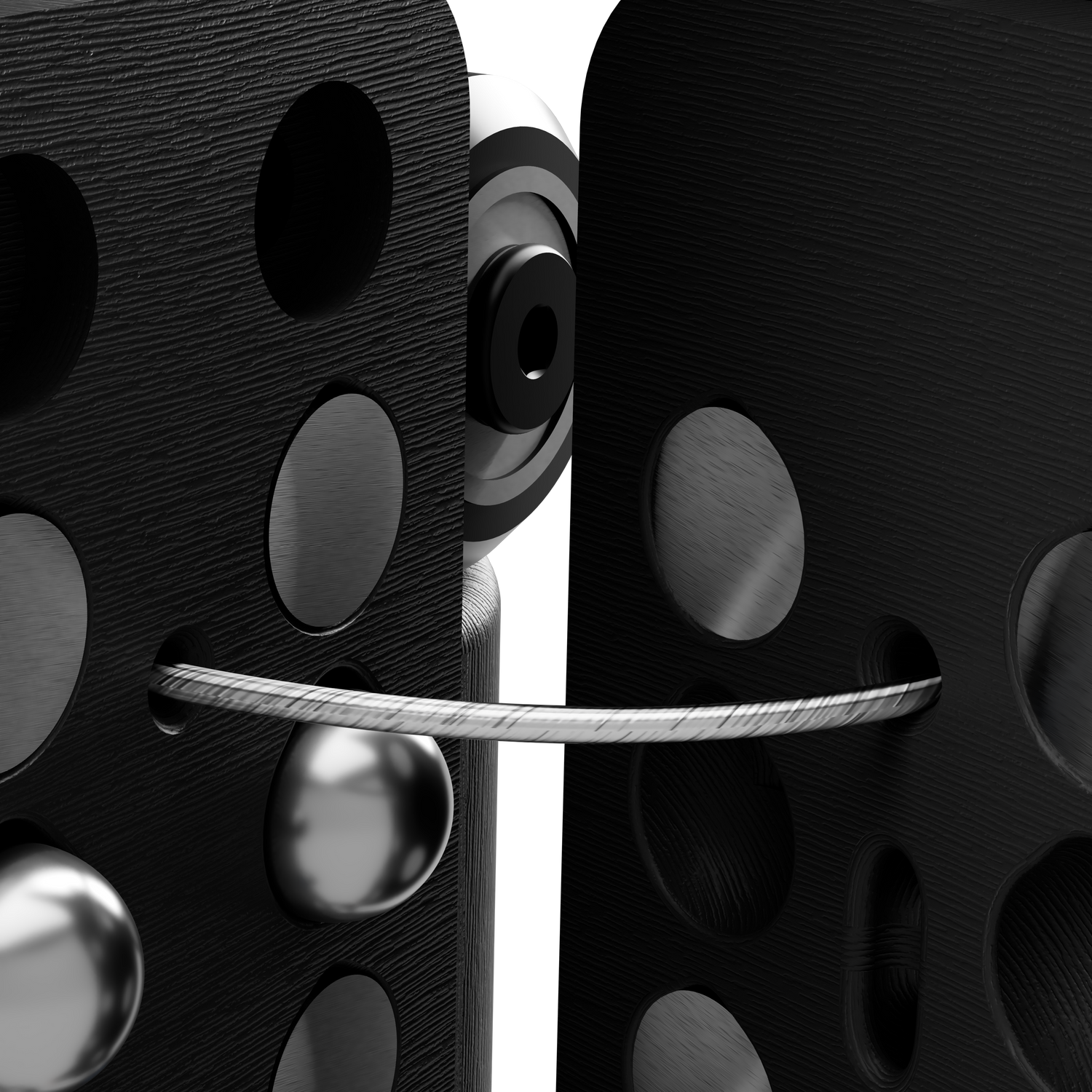

Hidden Lanyard

Torch stays safely suspended after a disconnect. Innovative internal lanyard prevents floor drops and water dunks.

Initial Height Sensing

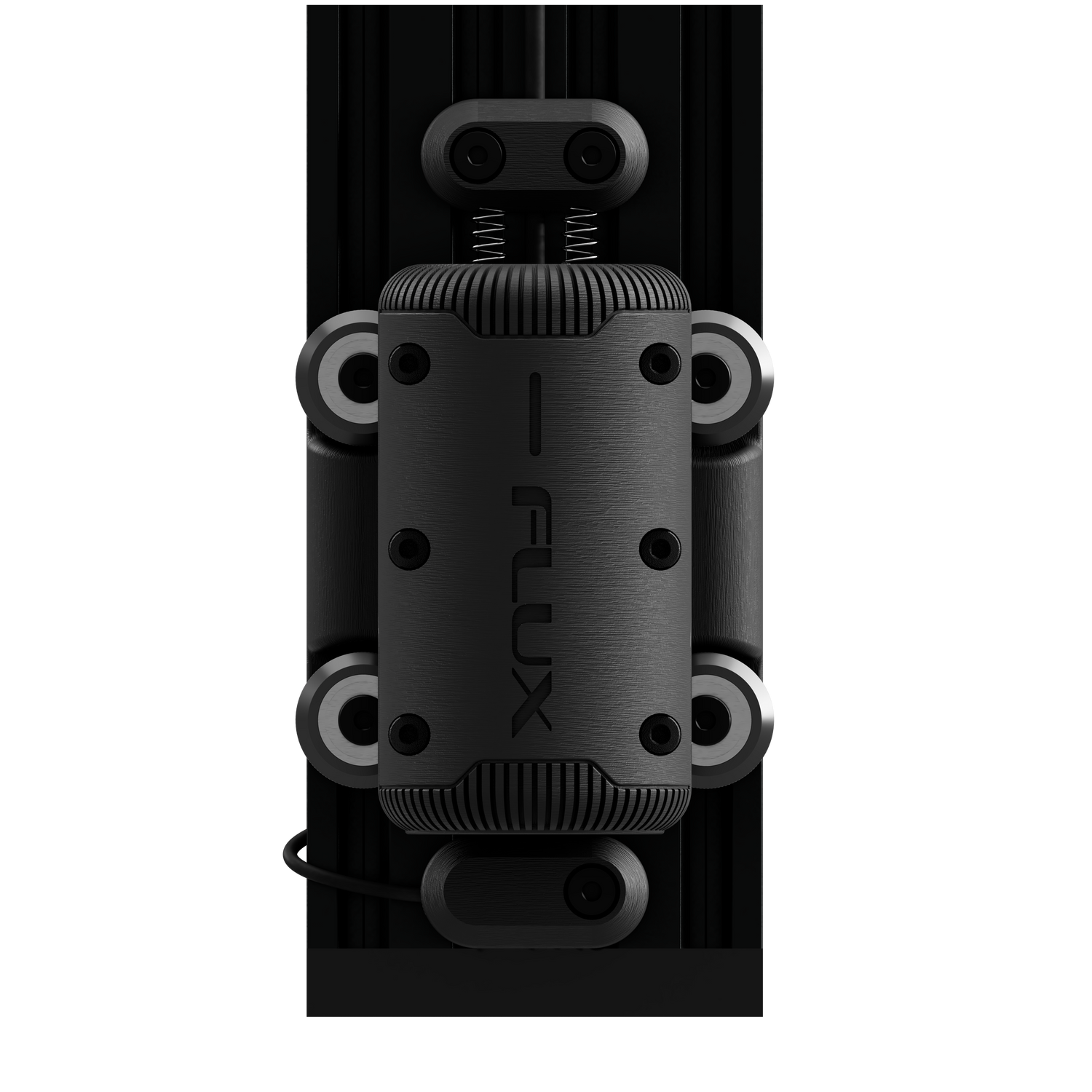

Full Floating Head

The sprung loaded head lets your machine touch off accurately and repeatably every time using the built in IP67 waterproof switch.

Innovative Design & Composition

An engineering-grade polymer used for the main body was carefully selected specifically for this application, when compared to standard plastics, ours boasts:

  • Built-in UV Resistance - To withstand the harsh exposure from the plasma arc without degrading,
  • Chemical, Oils and Grease Resistance - Stands up in harsh workshop conditions,
  • High Temperature Performance - Handles residual heat emitted from the torch without warping,
  • Superior Wear Resistance - Ensures repeatable, reliable performance over time.
  • Carbon fibre-reinforced - Enhancing rigidity and structural integrity for long lasting reliability.

Technical Specifications

  • Height (excluding cables): 145mm
  • Width: 82mm
  • Depth: 66mm

Datasheet

FAQ

Will it fit my torch?

Flux is designed to fit standard CNC plasma torches with a 35mm (1 3/8") barrel diameter. This includes most common models such as the Hypertherm Duramax torches.

How do I wire the sensors to my controller?

The built-in crash detection uses a D2HW-C203MR SPST-NO microswitch, which simply connects like a standard limit switch. Most CNC controllers (including those using GRBL, LinuxCNC, or Mach3) support this. You'll connect the switch signal and ground to a digital input on your controller. A detailed wiring diagram is included with your order and available on our product page.

Will the sensor work with my system voltage?

Yes, the sensor is a mechanical microswitch, meaning it works across a range of voltages including 5V, 12V and 24V systems. Just wire like a standard limit switch and it should work with most CNC controllers.

Can I use it with a hand torch?

Flux is designed specifically for vertical machine torches. However, given enough interest we may consider developing a version compatible with hand torches.

Can I use Flux with Ohmic Sensing?

Yes. Flux is fully compatible with ohmic sensing and is designed to complement it. While ohmic sensing provides accurate touch-off using electrical contact, it can fail if water, rust, or contamination disrupts the signal. Flux adds a mechanical floating head with a built-in switch that serves as a backup. If ohmic fails, Flux still ensures reliable initial height sensing and protects the torch in a crash.
